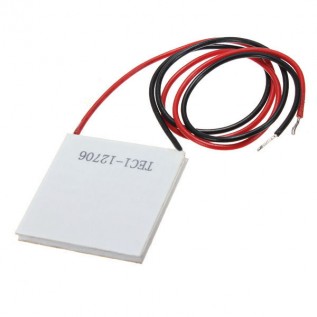

Элемент пельтье TEC1-12706 12V 60W

Элемент пельтье TEC1-12706 12V 60W
Модель: TEC1-12706
Наличие: Нет в наличии
Цена: 87.36 грн.
Кол-во:     - или -   В закладки
В сравнение

Термоэлектрический элемент пельтье может использоваться для охлаждения или для нагрева.

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads

Model: TEC1-12706
Size: 40mm x 40mm x 3.8mm
Voltage : 12V
Umax (V) : 15V
Imax (A) : 4.3-4.6A
QMax (W) : 72W
Power Cord : 300mm
Net weight : 22g
Color : White

Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end. If you want to get a bigger system Ling, it is recommended that two cooling mode, with two stack up with the above, a grim absorption following a fever, the experiments prove two refrigeration effect is much better than the single-stage, the condition can choose three, of course, have a large power supply support.
